The Embedded Multicast Security Lab

Securing group communication in constrained networks requires new solutions to be found, implemented and evaluated. This is especially true when group communication is desired, which turns out to be much more difficult to secure than point-to-point communications, as the sharing of keys along the group potentially lowers the security of the solutions. There is a variety of work on security in constrained networks, but most of them only pick one particular security property (e.g. μTesla) or are simply designed for a very specific use case (e.g. Group-DTLS for the lightening industry). This is especially true for group communication, which is a niche, but turns out to be very attractive for constrained networks.

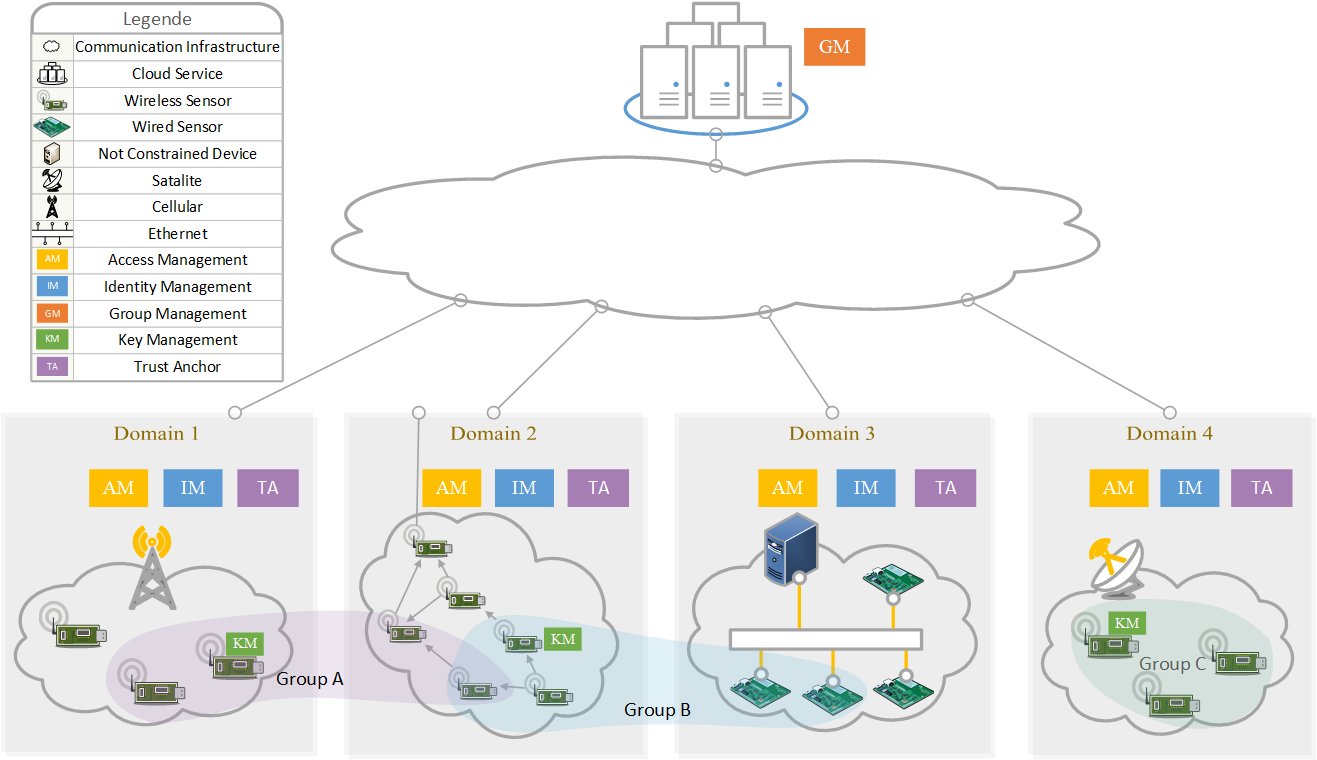

Smart Homes, Cars, Factories, etc. are networks of such devices acting as one system from an outside point of view. Applying well known models of informatics, this networks can be seen as administrative domains (ADs). Following this idea, the owner of a certain system (e.g. the owner of a Smart Home) acts as the administrator to the system, who in turn should decide on who to give access the system and its data. In current deployments, this access is usually managed on top of the cloud instance by registering an external actor (e.g. a smartphone) with access to the cloud service. The external actor sends control messages or data requests to the cloud, acting as some sort of "proxy" forwarding or translating the messages to the constrained device or the network.

Testbed

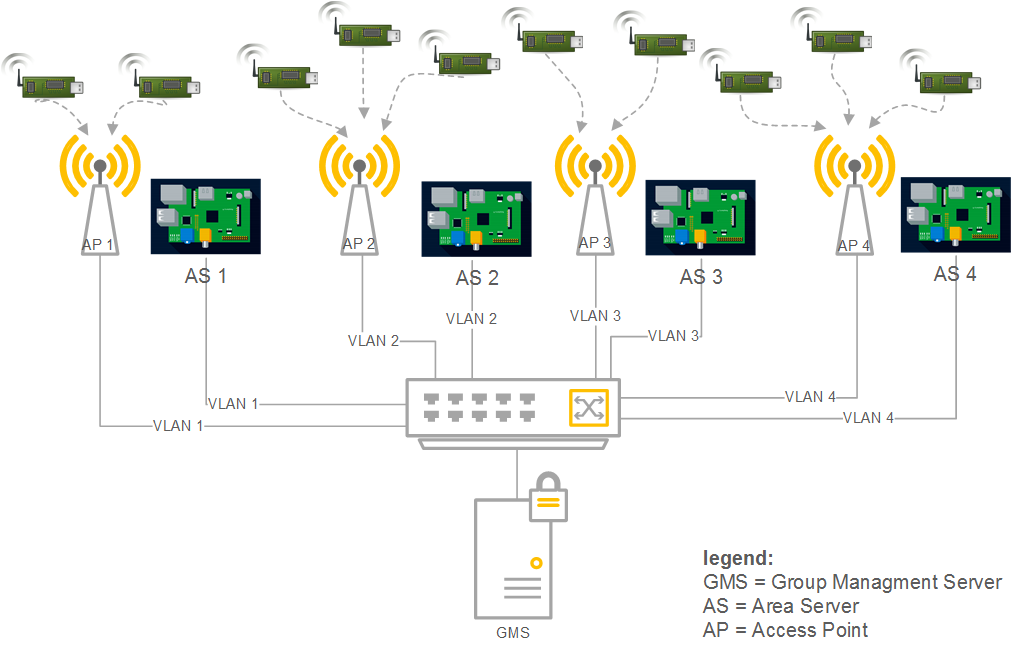

With multicasting being an interesting option for many use cases, we are currently developing a testbed, allowing flexible deployment of group communication scenarios and implementations of different solution for secure group communication. The testbed contains devices with different constraints, such as different microprocessor architectures - namely ARM Cortex M0 and ATmega328P, but also single board computers with the ARMv7 and ARMv8 architectures. They all communicate wired (Ethernet) or wireless (Bluetooth or WiFi). The testbed is able to simulate different kinds of communication groups:

spatial: a group of devices connected to one and the same access point. Each AP is managed by an Area Server (AS) separated with VLAN.
logical: a group of devices sharing information using IP multicasting and being managed by the Group Management Server (GMS).
secure: a group of devices sharing secure information using IPsec, being managed by the GMS, implemented on constrained devices.

Hardware

Computing Hardware:

Device	Architecture	Clock Speed	Flash Memory	SRAM
Arduino Uno	ATmega328	16MHz	32KB	2KB
Arduino M0+	ARM Cortex-M0+	48MHz	256KB	32KB
Arduino Due	ARM Cortex-M3	84MHz	512KB	96KB
ST NUCLEO-F091RC	ARM Cortex-M0	48MHz	256KB	32KB
ST NUCLEO-F103RB	ARM Cortex M3	72MHz	128KB	20KB
ST Nucleo F401	ARM Cortex-M4	84MHz	512Kb	96Kb
ST Nucleo144-F429	ARM Cortex-M4	180MHz	2Mb	256Kb

Network Modules

Semtech SX1272 868/915MHZ Lora MBED SHIELD
Texas Instruments SimpleLinkWi-Fi CC3200
Microchip AT86RF233 Zigbee / 802.15.4
WIZnet Ethernet-Module W5100
SparkFun nRF51822 Bluetooth / 802.15.1

Controller Hardware:

Device	Architecture	Clock Speed	Flash Memory	SRAM
Raspbery Pi v1	ARM1176JZF-S	700MHz		256MB
Raspbery Pi v3	ARM cortex-a53	1.2GHz Quad Core		1GB
Beaglebone Black	Cortex-A8 + Dual PRU	1000MHz	4GB	512MB

Networking Hardware

Netgear Prosafe GS748T Switch
Colubris MAP-625 Access Point
Laird Sentrius RG1 LoRa-Enabled Gateway
Digi CONNECTPORT X4 Gateway - ZigBee to Ethernet

Current activities

Design, Implementation and Evaluation of a Identity Based Signature (IBS) Scheme for group communication in constrained environments
Implementation and Evaluation of G-IKEv2 for Strongswan
Implementation and Evaluation of Walnut DSA for RIOT, FreeRTOS and Linux
Implementation and Evaluation of Diet-ESP for RIOT and Linux

Publications

Guggemos, T., Streit, K., Knüpfer, M., gentschen Felde, N., Hillmann, P., No Cookies, just CAKE: CRT based Key Hierarchy for Efficient Key Management in Dynamic Groups , In 13th International Conference for Internet Technology and Secured Transactions (ICITST-2018) , 2018, 13, 24-32, 12, 2018.
gentschen Felde, N., Grundner-Culemann, S., Guggemos, T., Using identity-based signatures for authenticated group communication , In 14th International Conference on Wireless and Mobile Computing, Networking and Communications (WiMob 2018), Limassol, Cyprus, 10, 2018.
Guggemos, T., Dynamic Key Distribution for Secure Group Communications in Constrained Environments, In Doctoral Consortium: Doctoral Consortium on e-Business and Telecommunications, 2018, SECRYPT, ICETE, Porto, Portugal, 07, 2018.
gentschen Felde, N., Guggemos, T., Heider, T., Kranzlmüller, D., Secure Group Key Distribution in Constrained Environments with IKEv2, Proceedings of 2017th IEEE Conference on Dependable and Secure Computing, IEEE, Taipei , Taiwan , 08, 2017.
gentschen Felde, N., Guggemos, T., Kranzlmüller, D., Secure Group Communication in Constrained Networks - A Gap Analysis , In Proceedings of the 1st IEEE GLOBAL IoT SUMMIT, 2017, IEEE Xplore, IEEE, Geneva, Switzerland, 06, 2017.
Guggemos, T., Migault, D., Killian, S., Laurent, M., Diet-ESP: IP Layer Security for IoT , Journal of Computer Security, 2017(25:2), IOS Press, Amsterdam, Netherlands, 05, 2017.
Migault, D., Palomares, D., Guggemos, T., Efficient Security for Homenet IoT and M2M Communications , In Proceedings of the 11th ACM Symposium on QoS and Security for Wireless and Mobile Networks, 2015(15), Q2SWinet 15, 9-17, ACM New York, ACM, Cancun Mexico, 11, 2015.

Student Work

Master Thesis

Reding, J.-L., Verwaltung digitaler Schlüssel im Internet der Dinge mit einer Blockchain, Ludwig-Maximilians-Universität München, 09, 2018.
Grundner-Culemann, S., Identity-based source authentication in constrained networks, Ludwig-Maximilians-Universität München, 10, 2017.
